ADVANCE Cross-Fix: Revolutionary Modular Clamping System for Precision Engineering
Introducing ADVANCE Cross-Fix, a cutting-edge modular clamping system designed for maximum flexibility and precision.
- Completely modular design for versatile applications
- Standard components that can be mounted in any position on a perforated grid plate
- Linear and rotational adjustability for precise alignment
- Customizable with positioning aids, contact surfaces, or pins to meet unique requirements
- Easy configuration based on 3D design with unique scaling capabilities
Cross-Fix revolutionizes prototype development and BIW panel checking with reusable and reconfigurable tooling units, setting a new standard in efficiency and adaptability for the automotive and manufacturing industries.

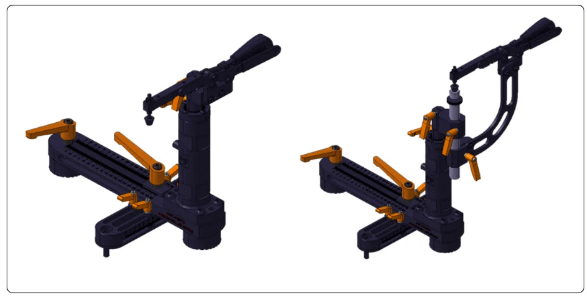

Cross-Fix is a completely modular clamping system. The standard components can be mounted in any position on the perforated grid plate. Each assembly can be adjusted linearly and rotation.
Each standard assembly can be adapted with different mounting variants such as positioning aids, contact surfaces or pins.
The configuration defined in the 3D design can be uniquely set based on scaling.
Additional assemblies with optical scanning aids can also be mounted on larger components. Freely adjustable adapter plates for optical measuring systems can be positioned “live”.
