Box Joint Technology

Introduction

Explore how Box Joint Technology is revolutionizing Aerospace Manufacturing and Prototype Development with its innovative approach to Reusable Tooling Solutions. Our cutting-edge Modular Tooling System simplifies complex manufacturing processes, enabling:

  • Efficient Prototype Tooling for faster iterations

  • Reusable and reconfigurable solutions to reduce production costs

  • Precision engineering tailored for the aerospace industry

Witness the future of tooling innovation designed to streamline production while maintaining accuracy and quality.

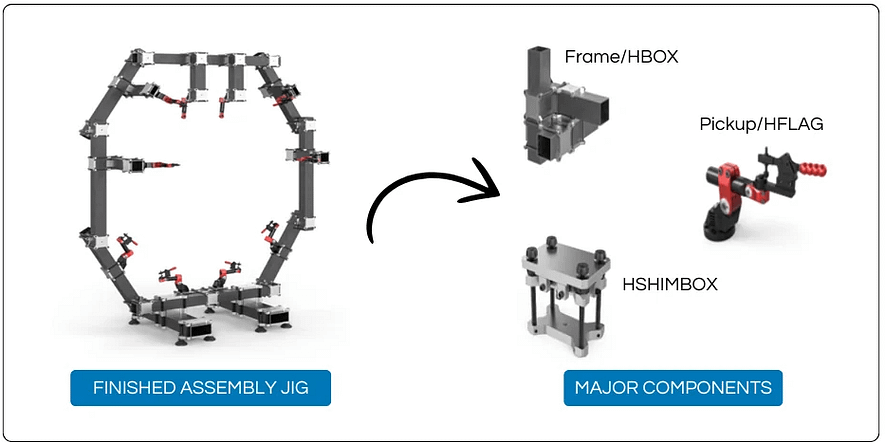

HBOX STRENGTHS

  • 3 major plate thicknesses (1”, 5/8”, 3/8”) or ( 25, 15, 10 mm)
  • Off the shelf aluminum or steel beams
  • Equal in stiffness to a weld
  • Dowels can be added
  • Eliminates welding and stress relieving

HFLAG STRENGTHS

  •  Available in 3 sizes (S, M and L)
  •  Same stiffness and strength as solid aluminum
  •  Dowels can be added
  •  Standard end effectors available
  •  Eliminates expensive, custom-made risers, plates, locators, shims, etc.

HSHIMBOX STRENGTHS

  •  6 DOF
  •  Integrate Drill Jig, Headerboards, Forms, etc. into HBOX frame
